The Series 4704H 3-Leg Mechanical Part Outdoor and Indoor Hydraulic Assembly is a high precision tool designed for the efficient removal of cylinder liners and other mechanical components both outdoors and indoors.
This 3-leg extractor is distinguished by its versatility, as it includes two sets of legs that adapt to different diameters and applications.
Kit 470405 is ideal for outdoor and indoor extraction with a diameter greater than 97mm, while kit 470415 specializes in indoor extraction with a maximum diameter of 97mm.

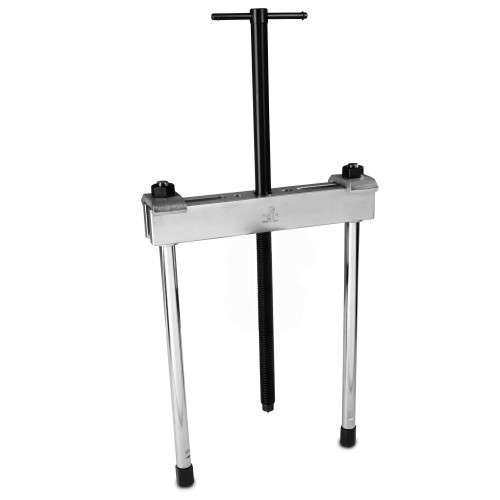

This set integrates perfectly with the 1100H series bridges, guaranteeing optimal performance in the most demanding tasks.
In addition, the self-centering system allows automatic centering of the legs, which ensures a firm and precise grip during use, reducing the risk of damage to components.

Recommendations for use:
Before using the extractor, be sure to select the appropriate set of legs according to the diameter of the part to be extracted.
Verify that the work area is clean and free of obstructions to avoid interference during operation.
Apply even pressure when operating the hydraulic system to ensure smooth, controlled removal.
Wear personal protective equipment, such as gloves and safety glasses, while using the extractor.
Perform a test on a lower value or less critical part if this is your first time using the equipment to familiarize yourself with its operation.

Maintenance recommendations:
Clean the extractor after each use to prevent the build-up of dirt and debris that may affect its operation.
Regularly lubricate moving parts to ensure smooth movement and prevent premature wear.
Store the hydraulic assembly in a dry, protected location to prevent corrosion and other environmental damage.
