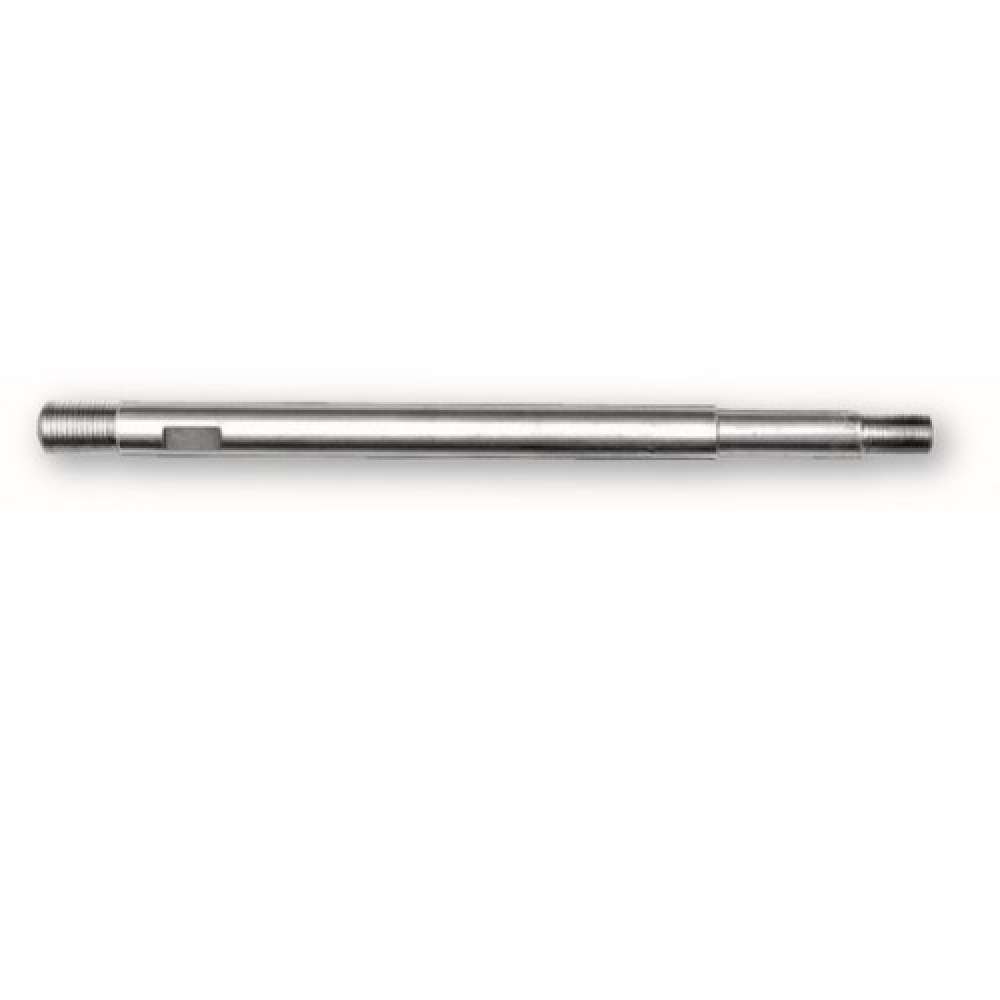

EXTENSIONS FOR SERIE 1100-1100S-1100H
EXTENSIONS FOR SERIE 1100-1100S-1100H reference list

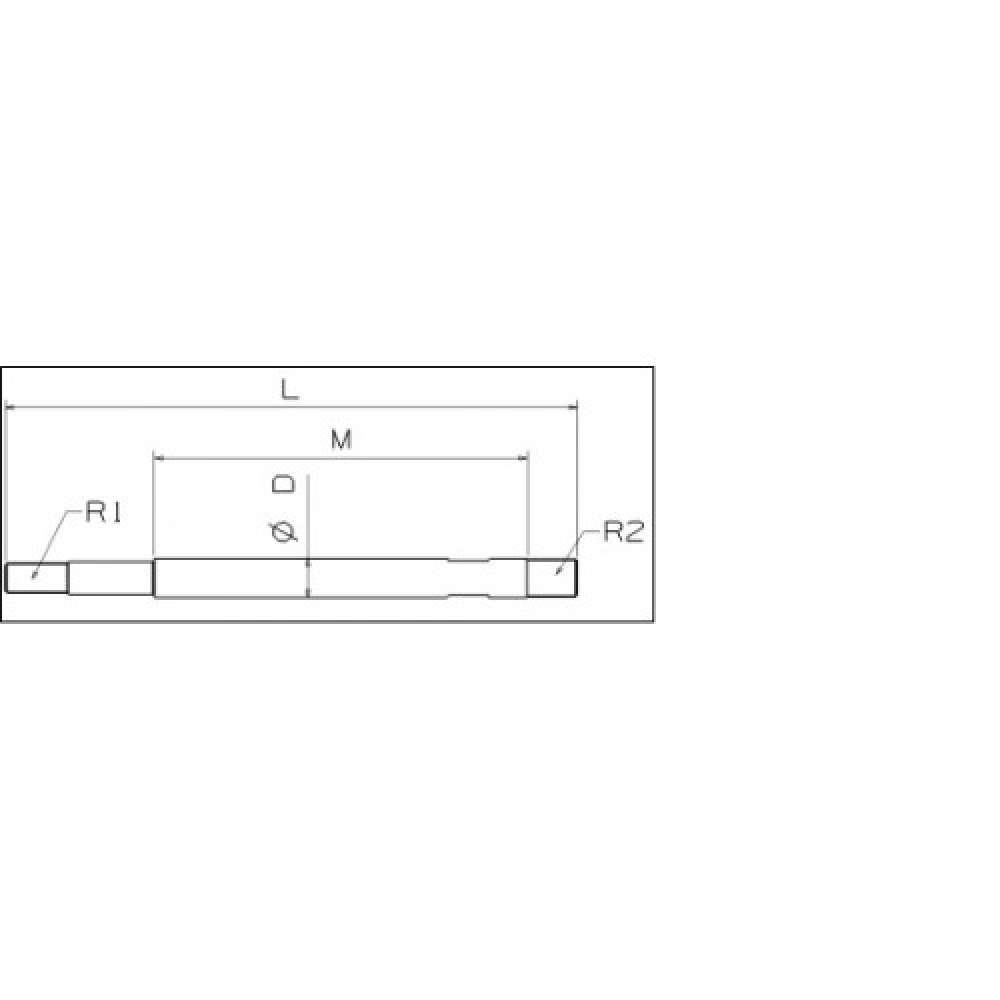

| Ref. | Weight | Price | Useful length | Diameter | Length (L) | Top Thread (RS) | Bottom Thread (RI) | Sparepart | Accessories | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| 1102-150 | 0.1Kg | 12,70 € | 100 | 12 | 158 | M-10 | 3/8" 24h |  | ||
| 1110-180 | 0.3Kg | 16,60 € | 100 | 16 | 180 | 1/2" 20h | 5/8" 18h | | ||
| 1110-230 | 0.3Kg | 24,40 € | 150 | 16 | 230 | 1/2" 20h | 5/8" 18h | | ||
| 1110-360 | 0.5Kg | 30,00 € | 280 | 16 | 360 | 1/2" 20h | 5/8" 18h | | ||
| 1110-460 | 0.7Kg | 37,80 € | 380 | 16 | 460 | 1/2" 20h | 5/8" 18h | | ||
| 1120-209 | 0.5Kg | 43,20 € | 89 | 25 | 209 | 3/4" 16h | 5/8" 18h | | ||
| 1120-336 | 1.1Kg | 46,70 € | 216 | 25 | 336 | 3/4" 16h | 5/8" 18h | | ||
| 1120-515 | 1.8Kg | 88,80 € | 395 | 25 | 515 | 3/4" 16h | 5/8" 18h | | ||
| 1120-665 | 2.3Kg | 92,60 € | 545 | 25 | 665 | 3/4" 16h | 5/8" 18h | | ||
| 1120-855 | 3Kg | 102,90 € | 735 | 25 | 855 | 3/4" 16h | 5/8" 18h | | ||
| 1130-328 | 1.6Kg | 92,60 € | 158 | 32 | 328 | 1" 14h | 1" 14h | | ||
| 1130-582 | 3.2Kg | 126,00 € | 412 | 32 | 582 | 1" 14h | 1" 14h | | ||
| 1130-836 | 4.8Kg | 171,30 € | 667 | 32 | 836 | 1" 14h | 1" 14h | | ||
| 1152-504 | 4.4Kg | 224,20 € | 292 | 42 | 504 | 1 1/4" 12h | 1 1/4" 12h | | ||
| 1152-820 | 7.7Kg | 262,40 € | 608.5 | 42 | 820 | 1 1/4" 12h | 1 1/4" 12h | | ||
| 1152-1076 | 11Kg | 325,40 € | 864 | 42 | 1075.5 | 1 1/4" 12h | 1 1/4" 12h | | ||
| 1195-660 | 9.27Kg | 247,90 € | 400 | 50 | 660 | 1 3/4" 12h | 1 3/4" 12h | | ||
| 1195-1060 | 15.45Kg | 335,20 € | 800 | 50 | 1060 | 1 3/4" 12h | 1 3/4" 12h | | ||
| 1110-209H | 0.66Kg | 38,20 € | 106 | 25 | 209 | 3/4" 16h | 5/8"-18h | | ||
| 1110-460H | 1.586Kg | 51,40 € | 357 | 25 | 460 | 3/4" 16h | 5/8" 18h | | ||
| 1110-540H | 1.894Kg | 73,90 € | 437 | 25 | 540 | 3/4" 16h | 5/8" 18h | |
