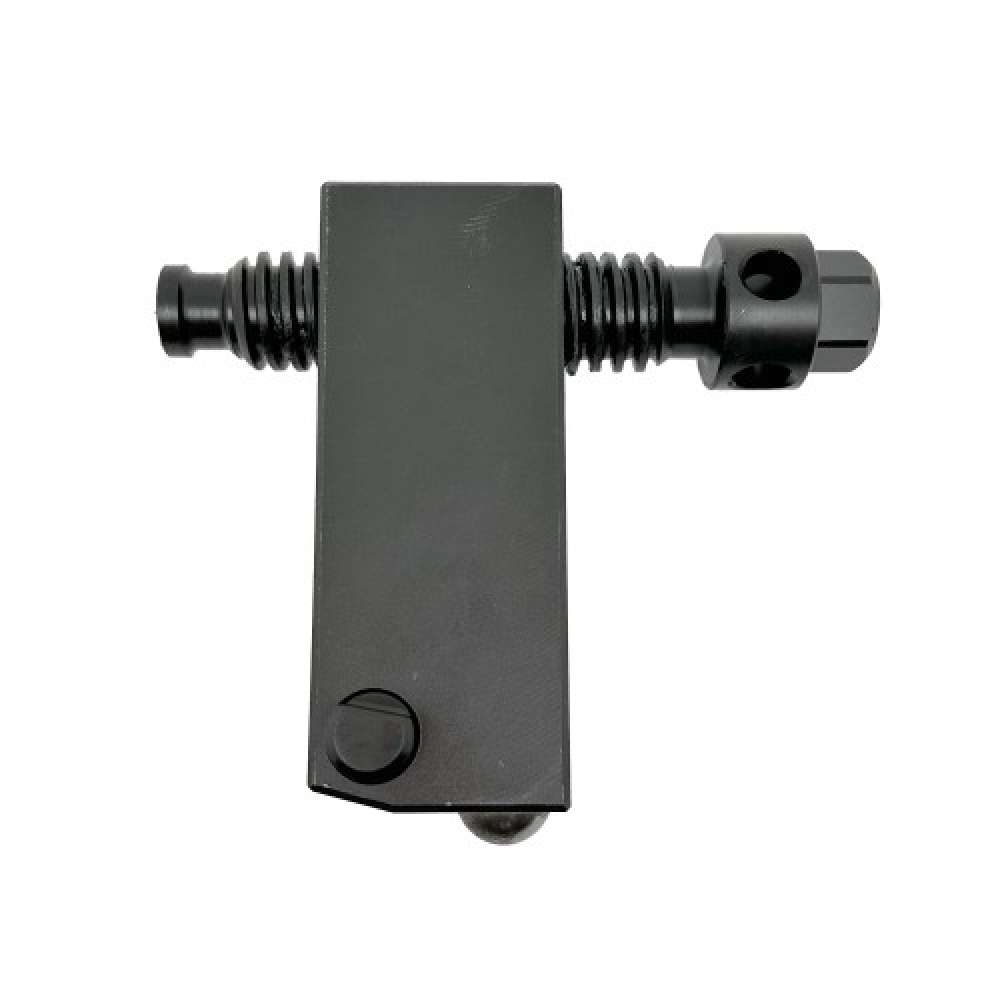

COMPLETE MECHANICAL SPINDLE FOR SERIE300 AND LIFTING BLOCKS

COMPLETE MECHANICAL SPINDLE FOR SERIE300 AND LIFTING BLOCKS

The horizontal full mechanical spindle block is an essential component in industrial machinery and assembly applications.
This device, which includes both the mechanical cleat and the spindle, is designed to provide a secure and stable fixation in mounting systems.
It is compatible with the 300 serie, making it versatile for multiple configurations and applications.
The horizontal design allows for efficient installation in limited spaces, optimizing equipment performance and durability.
Manufactured from high quality materials, this spindle block ensures long life, wear resistance and smooth operation even under intense working conditions.
In addition, its complete integration facilitates the installation and adjustment process, reducing downtime in operations.

Recommendations for Use
Check the compatibility of the spindle block with the corresponding serie (300) before installation.
Ensure that the surface where it will be mounted is clean and level to guarantee optimal fixation.
Use appropriate tools for assembly, avoiding damage to the component or the equipment where it will be installed.
Follow the manufacturer's specifications for spindle tightening torque to avoid incorrect installation.
Perform load tests after installation to verify that the system is operating correctly.

Maintenance Recommendations
Carry out periodic inspections of the spindle block to identify possible wear or damage.
Lubricate the spindle regularly according to the manufacturer's instructions to ensure smooth, friction-free movement.
Replace any worn or damaged components immediately to prevent system failure and prolong the life of the equipment.

Bullet points

  • Durability: Manufactured from heavy-duty materials that ensure long life and reliable performance in demanding environments.
  • Reduction in Installation Times: Being a complete set, it reduces the time necessary for assembly and adjustment, optimizing productivity.
  • Greater Safety and Stability: Provides a robust fixation that minimizes the risk of failures or unwanted displacements, improving operational safety.

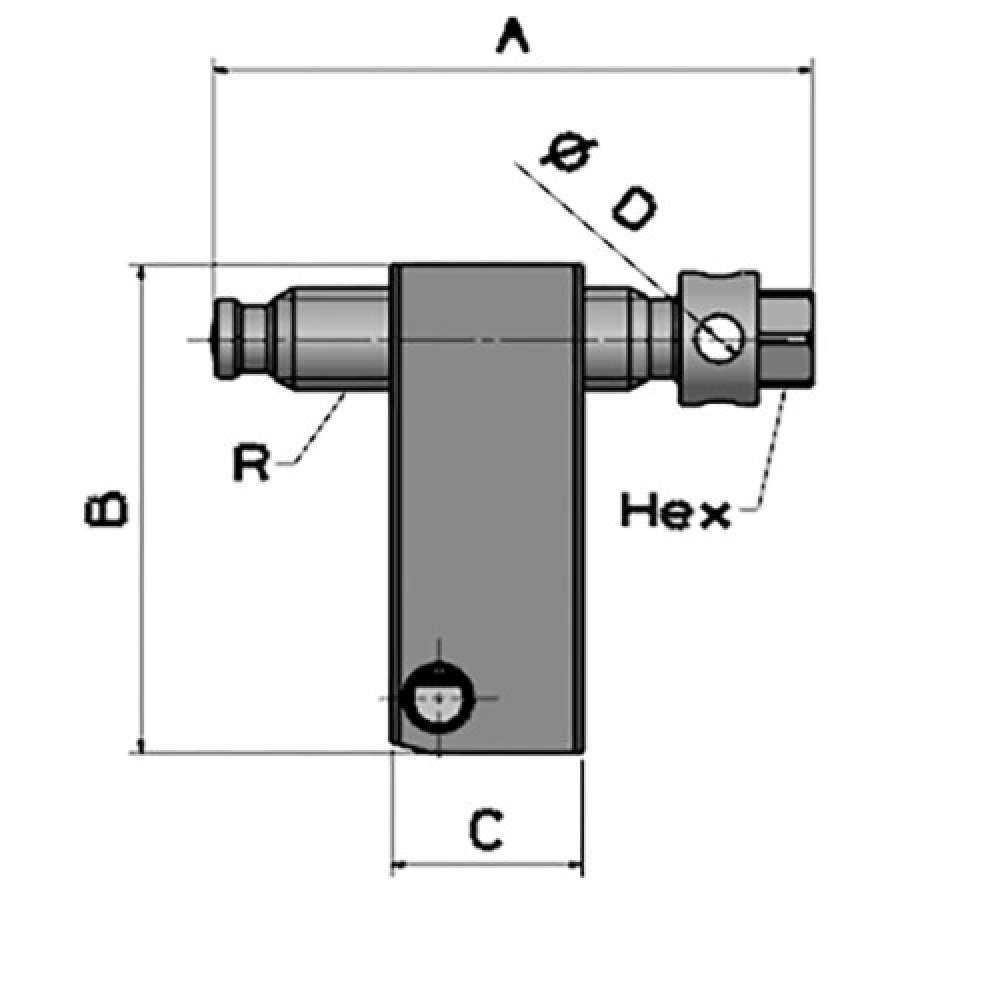

COMPLETE MECHANICAL SPINDLE FOR SERIE300 AND LIFTING BLOCKS reference list

Ref. Weight Price RCATONXBViceØDHexagonVice and lifting block Sparepart Accessories Buy
30015090 2.9Kg 164,40 € TR26x549154485125300/1501224Vice 300/150
30020090 3.6Kg 228,60 € TR26x559154485140300/2001224Vice 300/200 and lifting block 15031
30025090 5.5Kg 370,40 € TR26x562154485157Block for extension 250311824Lifting block 25031
30030090 7.5Kg 515,50 € TR30x5761896100165Block for extension 300311828Lifting block 30031
