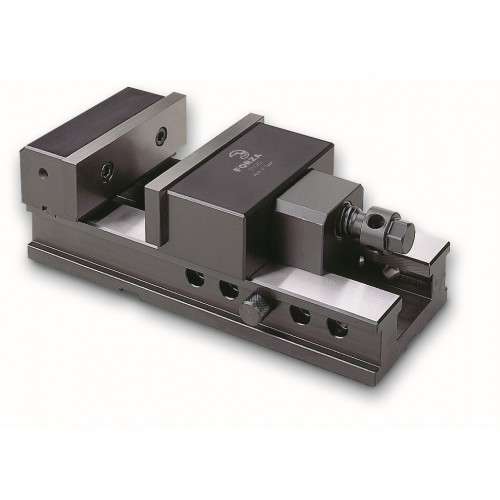

GUIDED STRAIGHT JAWS VICES

Straight jaws guided vices.
By tightening the spindle, the work piece does not lift.
Interchangeable locks.
The jaw adapts to the piece.
It is possible to be assembled in a swivel base.

Bullet points

Guided vice for a better clampling even with small surface.
Tight clamping of the pieces without lifting them from the body vice.

GUIDED STRAIGHT JAWS VICES reference list

manual GUIDED STRAIGHT JAWS VICES Download

3D Documents and drawings You must register to access

Enter

GUIDED STRAIGHT JAWS VICES reference list

Ref.	Weight	Price	A (Length)	B (Distance between jaws)	C	D (Base height)	F	H (Width)	J	M	Clamps	Keyways
29/100G	10.1Kg	774,10 €	250	109	34	37	90	100	70	50	12561	12
29/100GL	9.1Kg	856,60 €	296	150	34	37	90	100	70	50	12561	12
29/125G	13.2Kg	883,40 €	303	130	40	42	110	125	88	64	12561	12
29/125GL	14.7Kg	958,50 €	348	175	40	42	110	125	88	64	12561	12
29/150G	30Kg	1.336,70 €	403	200	56	51	135	150	115	84	15061	16
29/150GL	27Kg	1.408,10 €	453	250	56	51	135	150	115	84	15061	16
29/150GS	33Kg	1.503,60 €	502	300	57	51	135	150	115	84	15061	16
29/175G	34Kg	1.480,40 €	432	225	58.5	56	135	175	120	86	15061	16
29/175GL	36.5Kg	1.619,50 €	482	275	58.5	56	135	175	120	86	15061	16
29/175GS	40Kg	1.680,70 €	556	275	58,5	56	135	175	120	86	15061	16
29/200G	44Kg	1.780,40 €	470	250	66	61	160	200	145	92.5	20061	16
29/200GL	49Kg	1.927,80 €	520	300	66	61	160	200	145	92.5	20061	16
29/200GS	56.4Kg	2.070,00 €	570	300	65	61	160	200	145	92,5	20061	16
