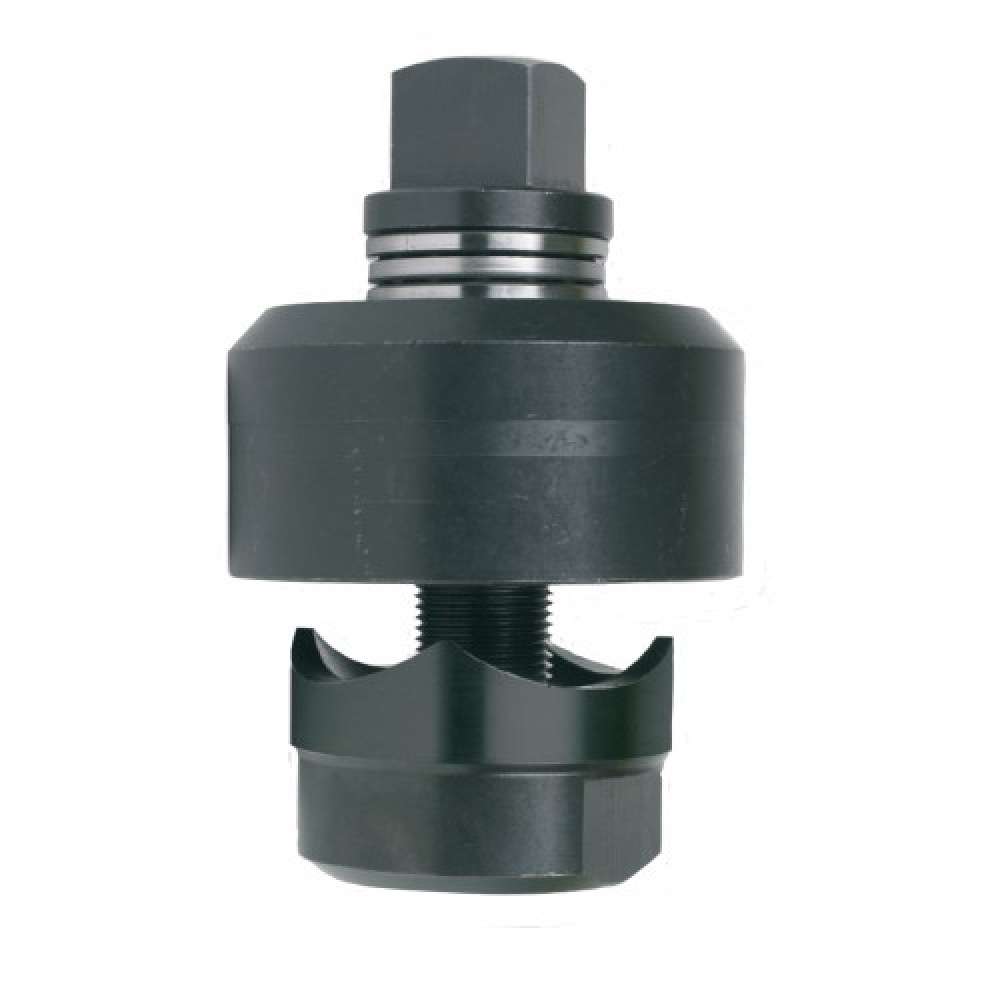

NON GRINDED KNOCK OUT PUNCH WITH BEARING
Mechanical sheet punches without grinding and bearing with anti-scratch washer.
Standard punches can cut up to 2 mm in steel sheets and 1.5 mm in stainless steel sheets.
*This is a general recommendation, there is a wide variety of steels and stainless steels. It is advisable to oil the sheet metal before cutting (e.g. use protoolube). In case of doubt, it is recommended to use series 56.
Standard punches can cut up to 2 mm in steel sheets and 1.5 mm in stainless steel sheets.
*This is a general recommendation, there is a wide variety of steels and stainless steels. It is advisable to oil the sheet metal before cutting (e.g. use protoolube). In case of doubt, it is recommended to use series 56.
Bullet points
- The screws of the 55 series drills are of very high strength 140Kg/mm2.
- The series 55 includes a bearing which increases the performance of the drill by 200%, therefore, half of the strenth is required when cutting.
NON GRINDED KNOCK OUT PUNCH WITH BEARING reference list
manual NON GRINDED KNOCK OUT PUNCH WITH BEARING Download
manual NON GRINDED KNOCK OUT PUNCH WITH BEARING DownloadNON GRINDED KNOCK OUT PUNCH WITH BEARING reference list
| Ref. | Weight | Price | Diameter | Inches | PG | Screw | Sparepart | Buy |
|---|---|---|---|---|---|---|---|---|
| 55VAL13 | 0.1Kg | 35,50 € | 12,7 | 1/2" | - | M8 | | |
| 55VAL14 | 0.1Kg | 35,50 € | 14 | - | - | M8 | | |
| 55VAL15 | 0.1Kg | 35,50 € | 15 | - | 9 | M8 | | |
| 55VAL16 | 0.1Kg | 35,50 € | 16 | 5/8" | - | M8 | | |
| 55VAL18 | 0.1Kg | 37,30 € | 18 | - | 11 | M8 | | |
| 55VAL19 | 0.1Kg | 37,30 € | 19 | 3/4" | - | M8 | | |
| 55VAL20 | 0.2Kg | 36,50 € | 20 | - | 13 | M10 | | |
| 55VAL22 | 0.2Kg | 38,70 € | 22 | 7/8" | 16 | M12 | | |
| 55VAL25 | 0.2Kg | 41,60 € | 25 | 1" | - | M12 | | |
| 55VAL28 | 0.4Kg | 45,60 € | 28 | 1 3/32" | 21 | M12 | | |
| 55VAL30 | 0.4Kg | 45,00 € | 30 | - | - | M12 | | |
| 55VAL32 | 0.4Kg | 46,00 € | 32 | 1 1/4" | - | M12 | | |
| 55VAL35 | 0.5Kg | 49,80 € | 35 | - | - | M12 | | |
| 55VAL37 | 0.5Kg | 50,00 € | 37 | - | 29 | M12 | | |
| 55VAL38 | 0.6Kg | 50,00 € | 38 | 1 1/2" | - | M12 | | |
| 55VAL40 | 0.7Kg | 68,00 € | 40 | - | - | M14 | | |
| 55VAL43 | 0.9Kg | 77,90 € | 43 | 1 11/16" | - | M14 | | |
| 55VAL45 | 0.8Kg | 77,90 € | 44 | - | - | M14 | | |
| 55VAL47 | 0.9Kg | 85,80 € | 47 | - | 36 | M14 | | |
| 55VAL49 | 1Kg | 86,60 € | 49 | - | - | M14 | | |
| 55VAL50 | 1Kg | 86,60 € | 50 | - | - | M14 | | |
| 55VAL51 | 1Kg | 87,70 € | 51 | 2" | - | M14 | | |
| 55VAL52 | 1.1Kg | 87,70 € | 52 | - | - | M14 | | |
| 55VAL55 | 1.9Kg | 111,10 € | 55 | - | 42 | M20 | | |
| 55VAL60 | 1.9Kg | 123,00 € | 60 | 2 3/8" | 48 | M20 | | |
| 55VAL62 | 1.9Kg | 130,50 € | 62 | 2 7/16" | - | M20 | | |
| 55VAL63 | 1.9Kg | 130,50 € | 63 | 2 1/2" | - | M20 | | |
| 55VAL76 | 2.8Kg | 163,60 € | 76 | 3" | - | M20 | | |
| 55VAL89 | 3.5Kg | 179,10 € | 89 | 3 1/2" | - | M20 | | |
| 55VAL91 | 3.5Kg | 196,90 € | 91 | 3 9/16" | - | M20 | | |
| 55VAL102 | 4.2Kg | 207,20 € | 102 | 4" | - | M20 | | |
| 55VAL116 | 4.9Kg | 232,80 € | 116 | 4 9/16" | - | M20 | |
